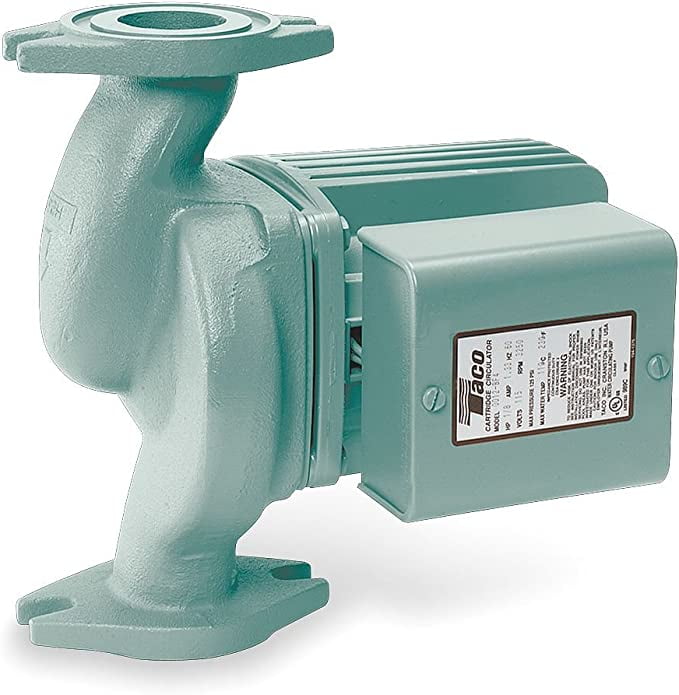

Taco 0010-F3 Circulator Pump, 1/8 HP - Cast Iron - Flanged Connection

<p>The Taco 0010 is designed for a wide range of large residential or light commercial water circulating applications. Typical uses include hydronic heating, radiant heating, primary-secondary loops, indirect water heaters, chilled water cooling, and potable hot water systems. The 0010 is designed for all open-loop, fresh water systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service, instead of replacing the entire circulator. Compact, direct-drive, low power consumption design makes it ideal for high-efficiency jobs. Features: standard high capacity output-compact design, quiet and efficient operation, direct drive - low power consumption, unique replaceable cartridge design - field serviceable, self lubricating, no mechanical seal, unmatched reliability, maintenance free, universal flange to flange dimensions, and cast iron construction.</p>

• Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged
• Voltage Rating: 115 V; Amperage Rating: 1.10
• Hz Rating: 60; Ph: 1
• RPM: 3250; HP: 1/8
• Cast iron, flanged
• Motor Type: Permanent Split Capacitor Impedance Protected.
• Maximum Flow: 32 GPM.
• Maximum Head: 10'.
• Minimum Fluid Temperature: 40°F (4°C).
• Maximum Fluid Temperature: 230°F (110°C).
• Maximum Working Pressure: 150 PSI.
• Connection Sizes: 3/4", 1", 1-1/4", and 1-1/2" Flanged.
• Dimensions: 7-1/4" x 5-5/16" x 3-3/16" x 3-15/16" x 5-3/8" x 6-3/8".
